Technical Data

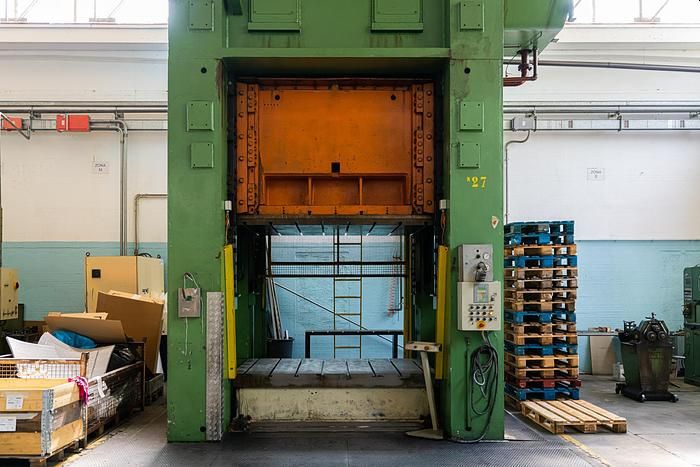

Manufacturer: COLOMBO AGOSTINO
Type of machine: 200 SE 2 – 630 LINK
Year: 1987 – Completely overhauled in 2010
Nominal Power: 630 ton
Dimension Table: 2400 x 1540 mm
Dimension Ram : 2400 x 1540 mm
Slide Stroke: 700 mm link
Stroke par minute:  20 n/min
Slide Adjustable: 160 mm
Slide – numbers of guides : 8
Slide adjustment system : driven
Front Light Between The Uprights: 2400 mm
Light – TDC : 1800 mm
Lateral passage: 1550 mm
Electrical system: good
Overall dimension: 4000 x 2500 x 6500 H
Motors: 3
Motor Power: 75 kw
Safety guards: front and rear

Equipment: variable speed drive | overload | Link drive removable front table

Machine in excellent working condition

Overall dimension: 4000 x 2500 x 6500 H mm

Our ref: 1073
Ita: Pressa Meccanica COLOMBO AGOSTINO 630 ton con Link Drive
