Technical Data

Manufacturer: MANZONI

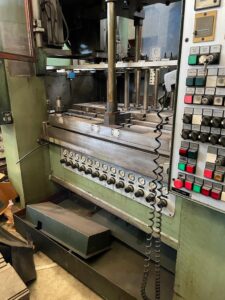

Type of machine: TRANSFER DM
Year: 1995
Nominal Power: 100 ton
Dimension Table: 1600 x 1000 mm
Dimension Ram : 1550 x 600 mm
Slide Stroke: 60-80-122-167-217-251-285-313-334-350 mm
Slide Adjustable: 20 mm
Slide Numbers of Guides: 8
Light – TDC :  1100 mm
Front Light between the Uprights: 1700 mm
Lateral passage: 800 mm
Blank holder: 7-13

Safety guards: front and rear

Overall dimension: 3000 x 1800 x 4500 H mm
Foundations: No

Approx. weight : 25.000 Kg

Our ref: 1077
ita: Pressa a Transfer Manzoni 100 ton
