Technical Data

Nominal Power   400 ton
Slide stroke    300 mm
Stroke par minute   18
Adjustment of the slide    200 mm
Shut height (stroke down, adjustment up)     505 mm
Distance between uprights   1.650 mm

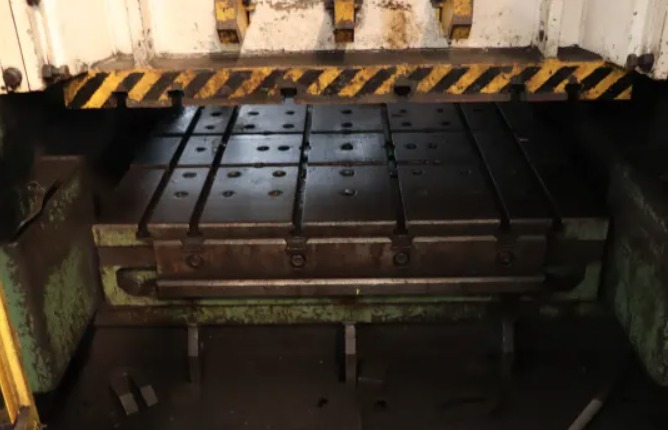

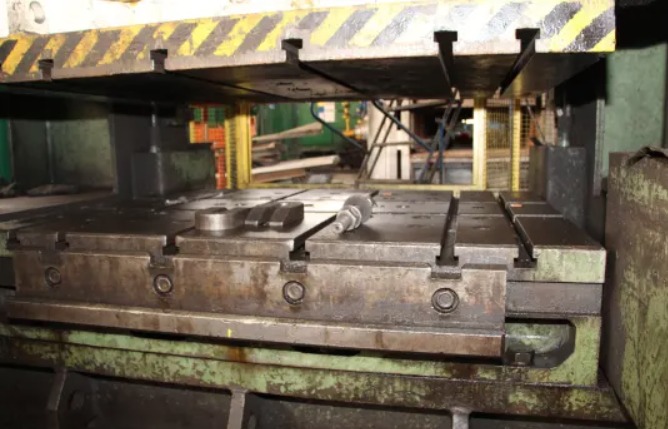

Dimension table   1600 x 1220 mm
Dimension of the slide    1600 x 1220 mm
Openings in the bed     1
Tickness of bolster   300 mm
Openings in the uprights   685 x 700 mm
Main motor   37 Kw
Adjustment motor of the slide 4 Kw
Cushions     1
Stroke of cushion   150 mm

Our ref: 1101

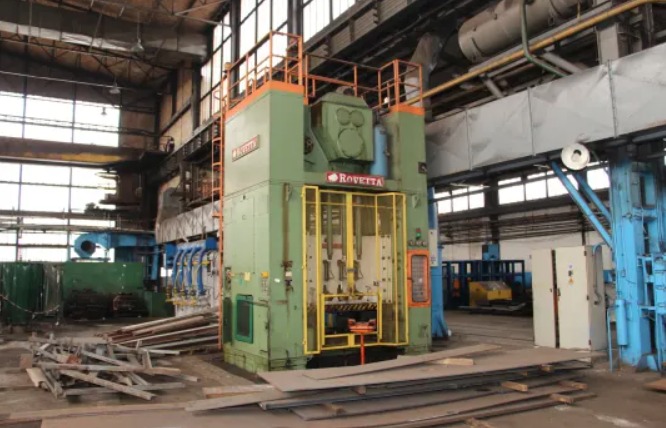

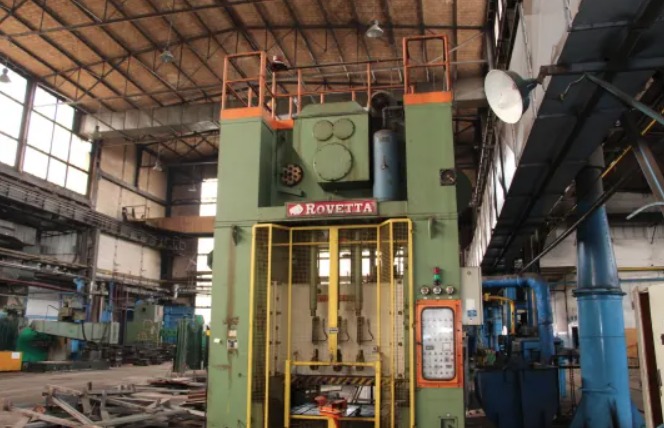

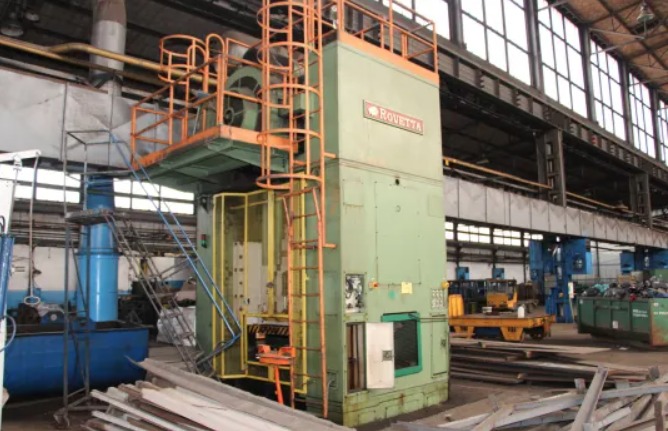

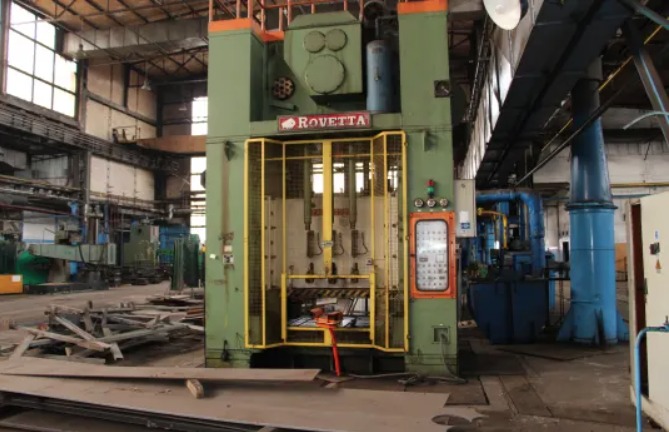

Ita: Pressa Meccanica Rovetta 400 ton
