Technical Data

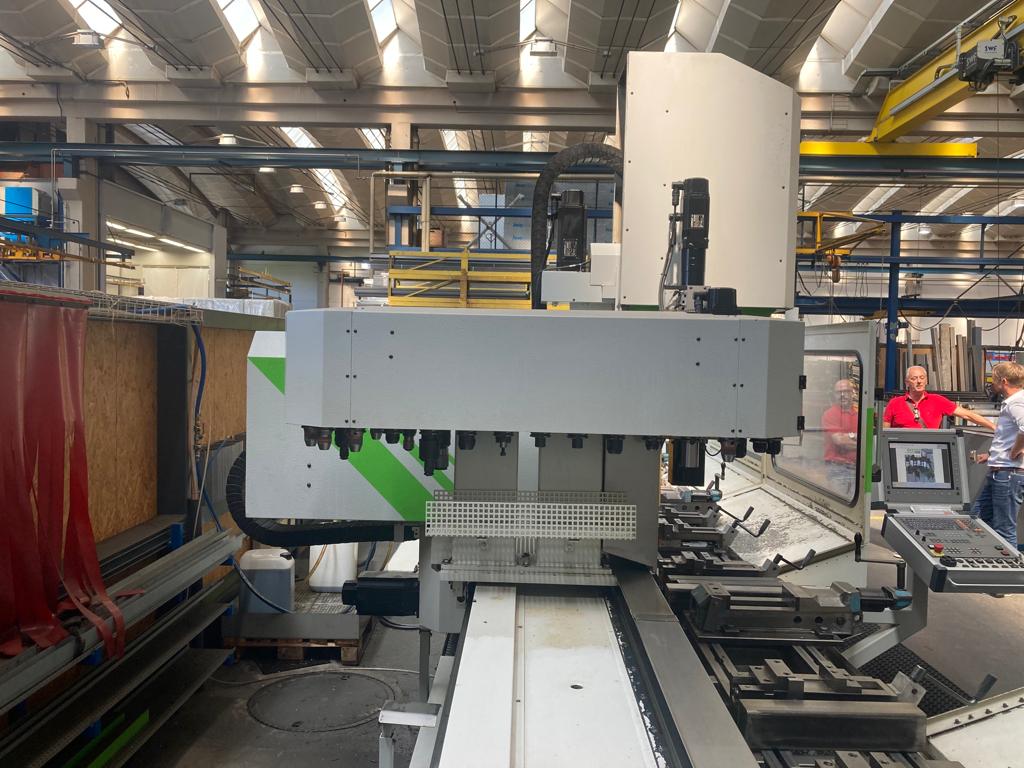

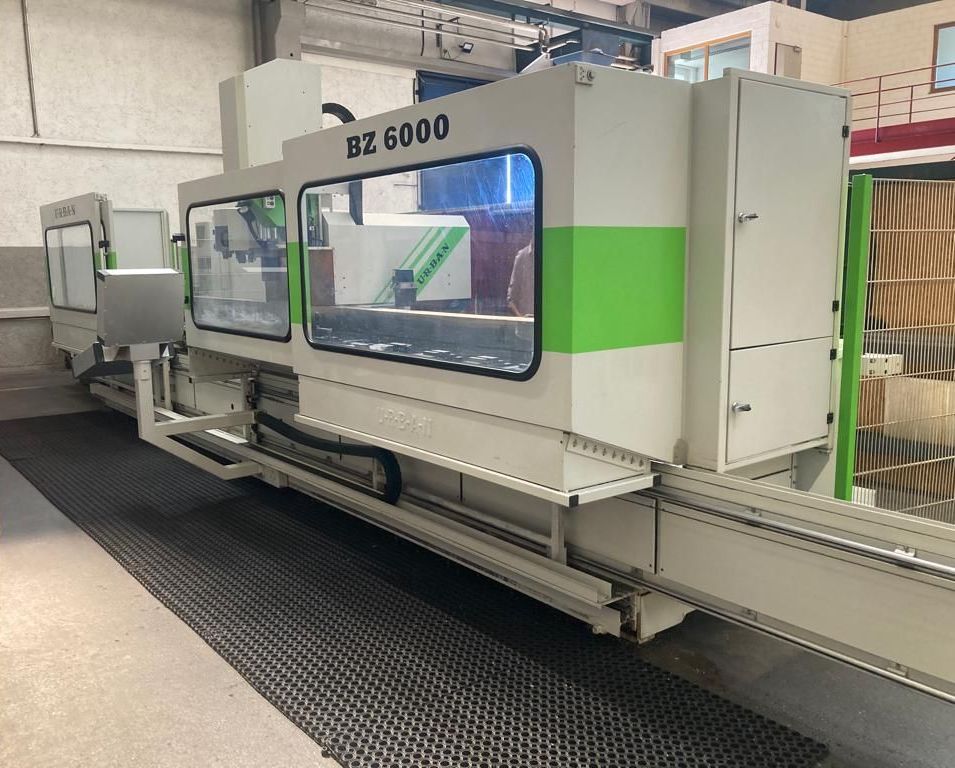

Mod: Urban BZ 6000
Condition: excellent condition
CNC Control: Heidenhain iNTC 530
basic design | moving column | Working Range: cubic
number of processing axes (excl parallel axes) 3
X-axis travel: 6200 mm | Y-axis travel: 550 mm | Z-axis travel: 605 mm
distance spindle nose – table surface:  (max.) 815 mm
table surface:  (left-right) 6200 mm
table surface:  (front-back) 550 mm
milling spindle / head
spindle revolutions: (min) 100 /min
spindle revolutions:  (max) 6000 /min
tool fixture : ISO SK 40
drive power:  S6 40% 6 kW
drive power: S1 100% 10 kW
drive power: 10 kW
Axis drives
feed velocity: (min) 0 mm/min
feed velocity: (max) 5000 mm/min
rapid traverse X: 40000 mm/min
rapid traverse Y: 25000 mm/min
rapid traverse Z: 25000 mm/min

Dimensions / weights
space requirements -left/right-:  11000 mm
space requirements -front/back-: 4500 mm
total height: 3000 mm
total weight approx.: 11000 kg

Tool magazine | magazine type: chain
number of positions: 30
tool length max.: 130 mm

Worked hours: 6.800

EQUIPPED WITH SPARE PARTS TOOLS:

• Nr. 8 Spindle GARANT SK 40
• Various Spindle Self Looking Holex SK 40
• Various reduction sleeve HOLEX SK/MK 40
• Nr. 40 Locking bolts
• Nr. 40 High pressure clamps GARANT
• Nr. 16 ground splined nuts

Our ref: 1084
Ita: Centro di Lavoro Fresatrice CNC URBAN BZ6000
