Technical Data

Nominal power: 1000 ton
adjustable slide travel: 170 mm
nominal sled runs per minute: no. 32
sled runs per minute single shot: no. 20
useful stroke of the slide at 100% of the PMI power: 2,5 MM
useful slide stroke at 25% of PMI power: 30 MM
distance between the mold support surface and the slide at PMI with the adjustment device all the way up: 470 mm
adjustment stroke of the distance between
the mold support surface and the slide: 16 mm
dimension of the mold support surface: 800×800 mm
Sled dimensions: 630×600 mm
minimum stroke of the upper ejector: 16 mm
superior ejection force: 100 kN
minimum stroke of the lower ejector: 100 mm
lower ejection force: 320 Kn

Year of construction 2000
CE Marked

Our ref: 1207

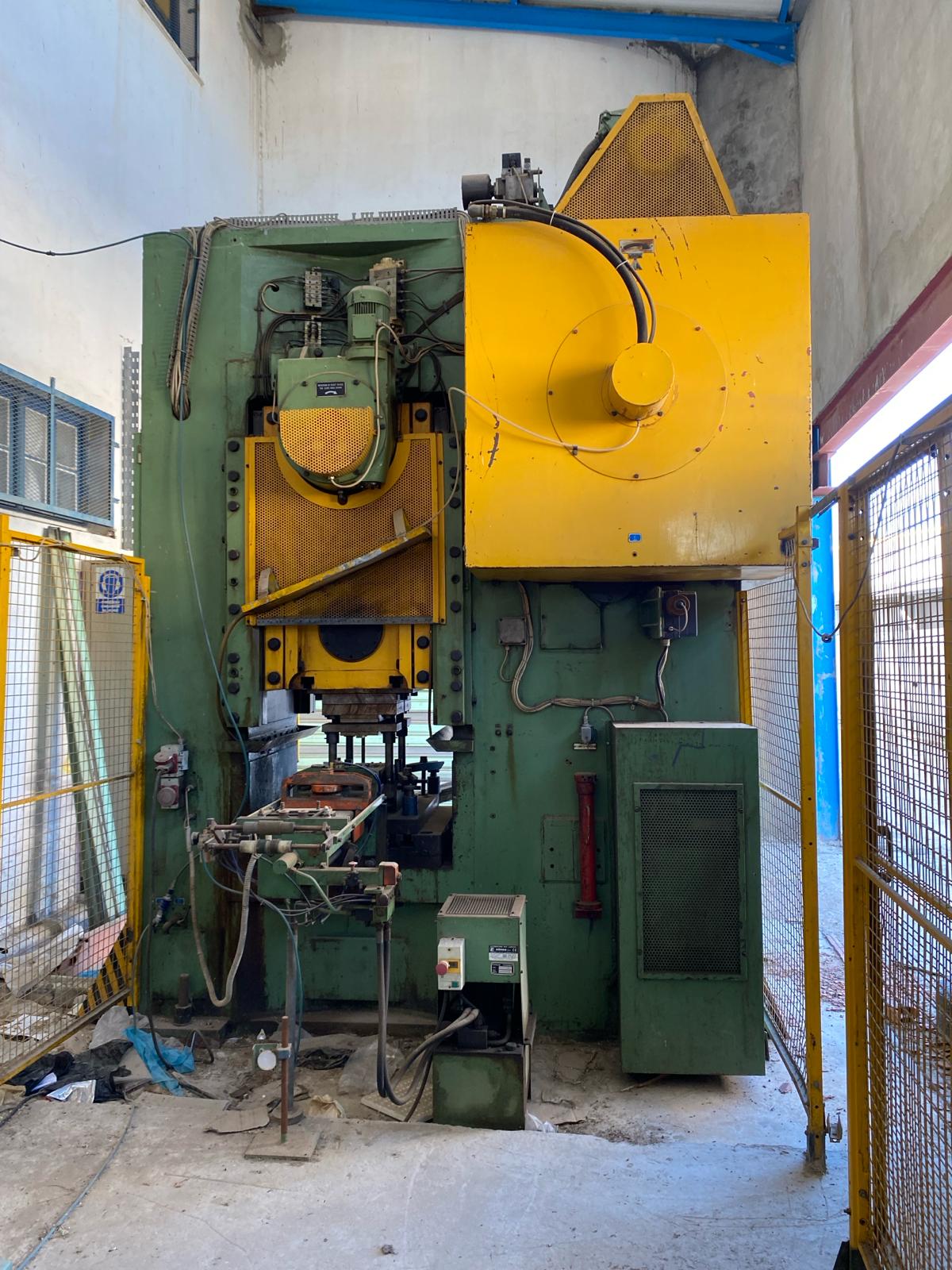

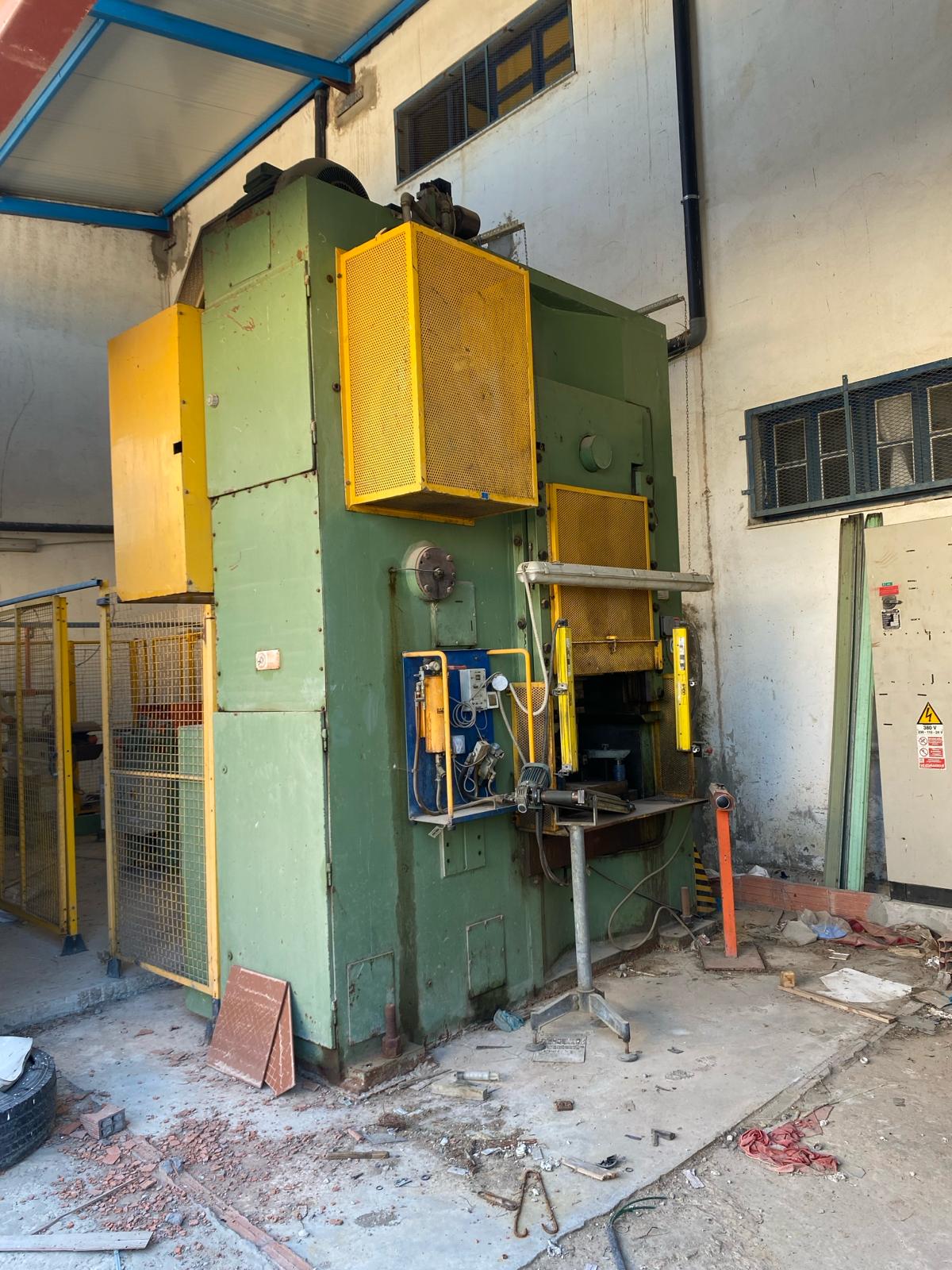

Ita: Pressa a Ginocchiera BARNAUL/STANITALIANA
