Technical Data

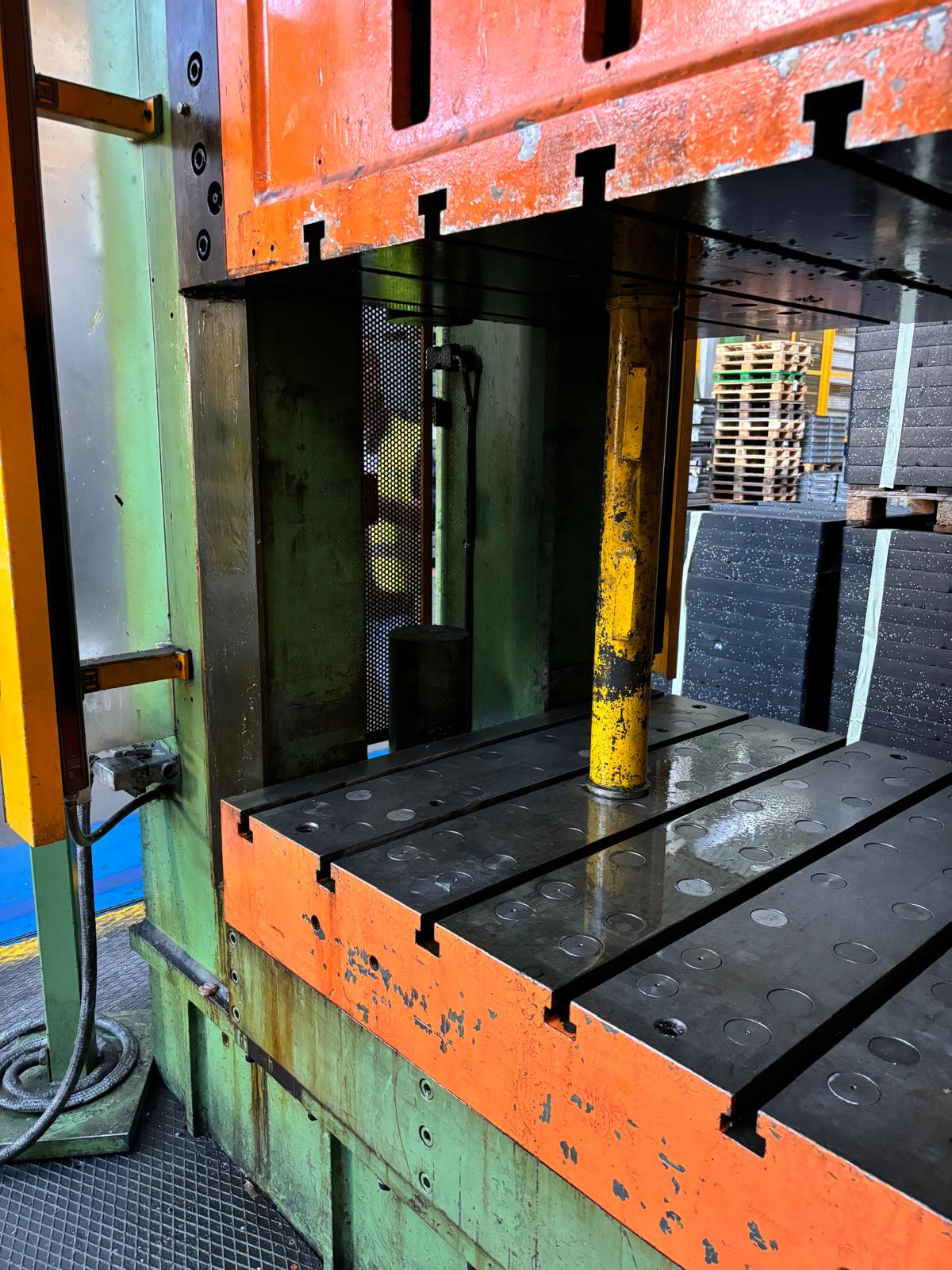

Type: Hydraulic Press
Nominal Power: 400 ton
Slide Stroke: 1000 mm
Max opening between table and slide: 1140 mm
Table size: 1600 x 1200 mm
Slide size: 1600 x 1200 mm
Blank holder force: 200 ton
Blank holder stroke : 600 mm
Main motor: HP 60
Auxiliary motor: HP 15

Overall dimension : 2500 x 1540 x 6500 mm (5.500 mm above the ground)

Weight: 30 ton

Machinery with Siemens PLC, mechanical overhaul and replacement of electrical system year 2017

Our ref: 1242
Ita: Pressa Idraulica CAVENAGHI & RIDOLFI 400 ton
