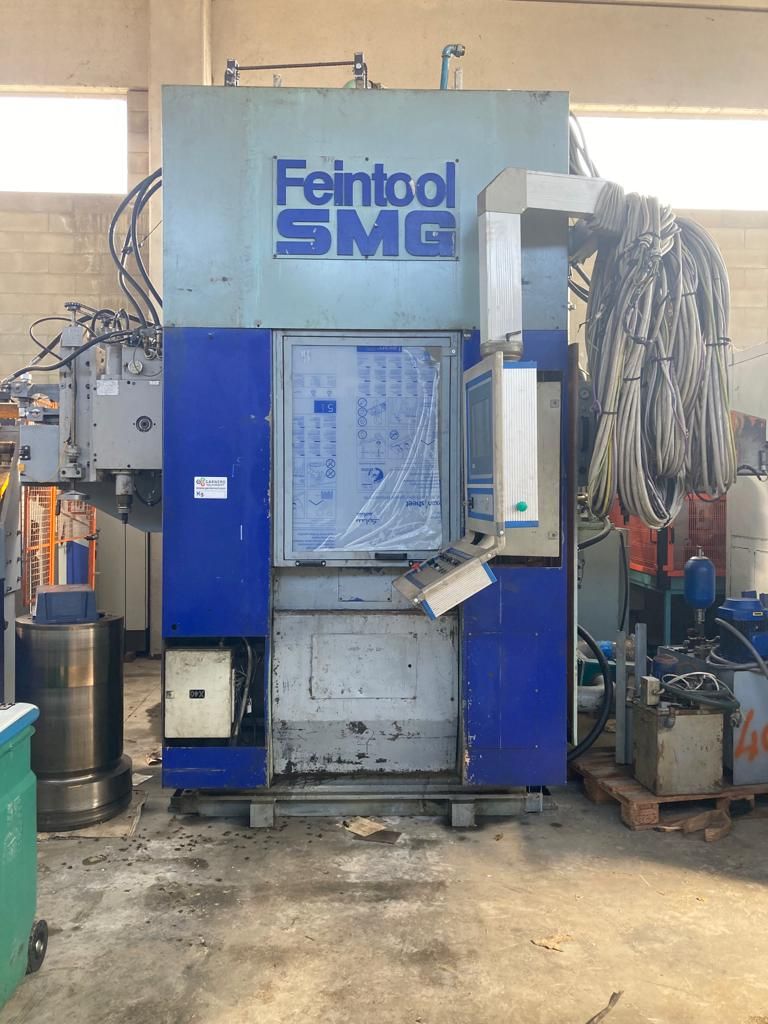

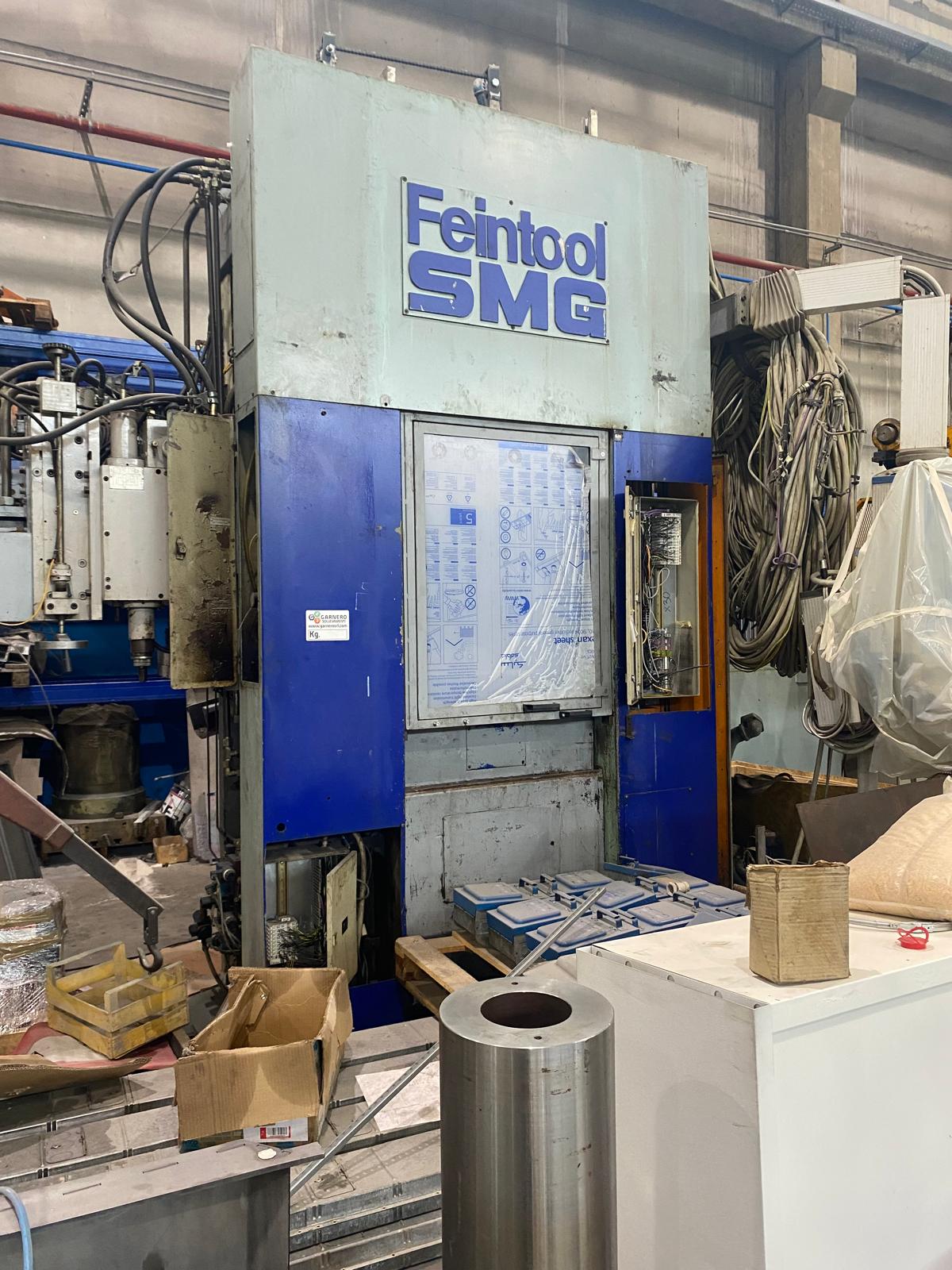

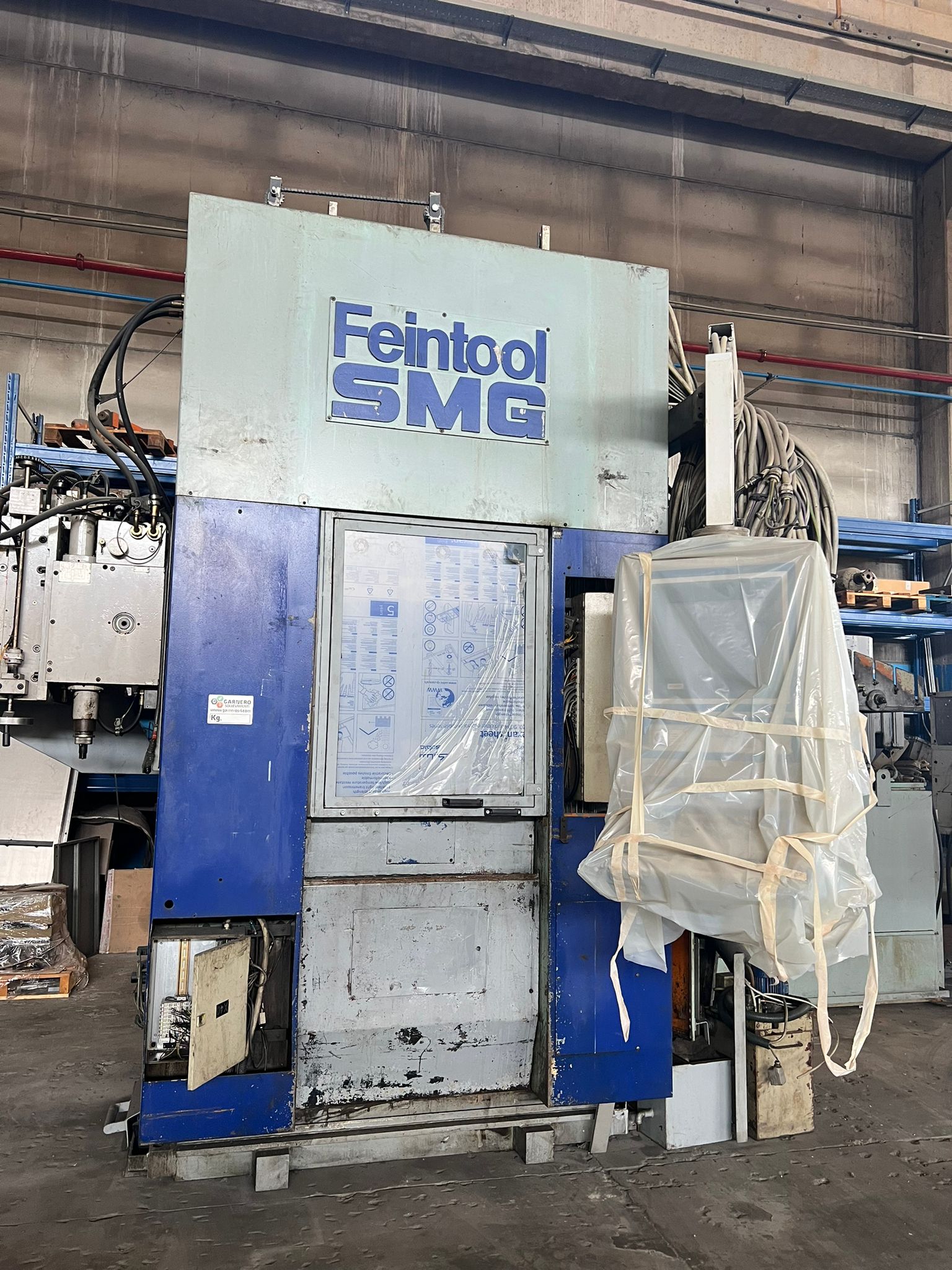

FEINTOOL HFA 4000 Fine Blanking Press with Feeder Line SARONNI

Technical Data

Power:  400 ton
Model:  HFA SMG FEINTOOL
cod. 7-4462 / A22-1013
Blank holder pressure:  252 ton
No. of strokes:  40
Die height:  330 -410 mm
Dimension upper table: 800 x 800 mm
Dimension lower table: 800 x 1050 mm
Slide stroke:   min. 150 – max. 230 mm
Construction year: 2003

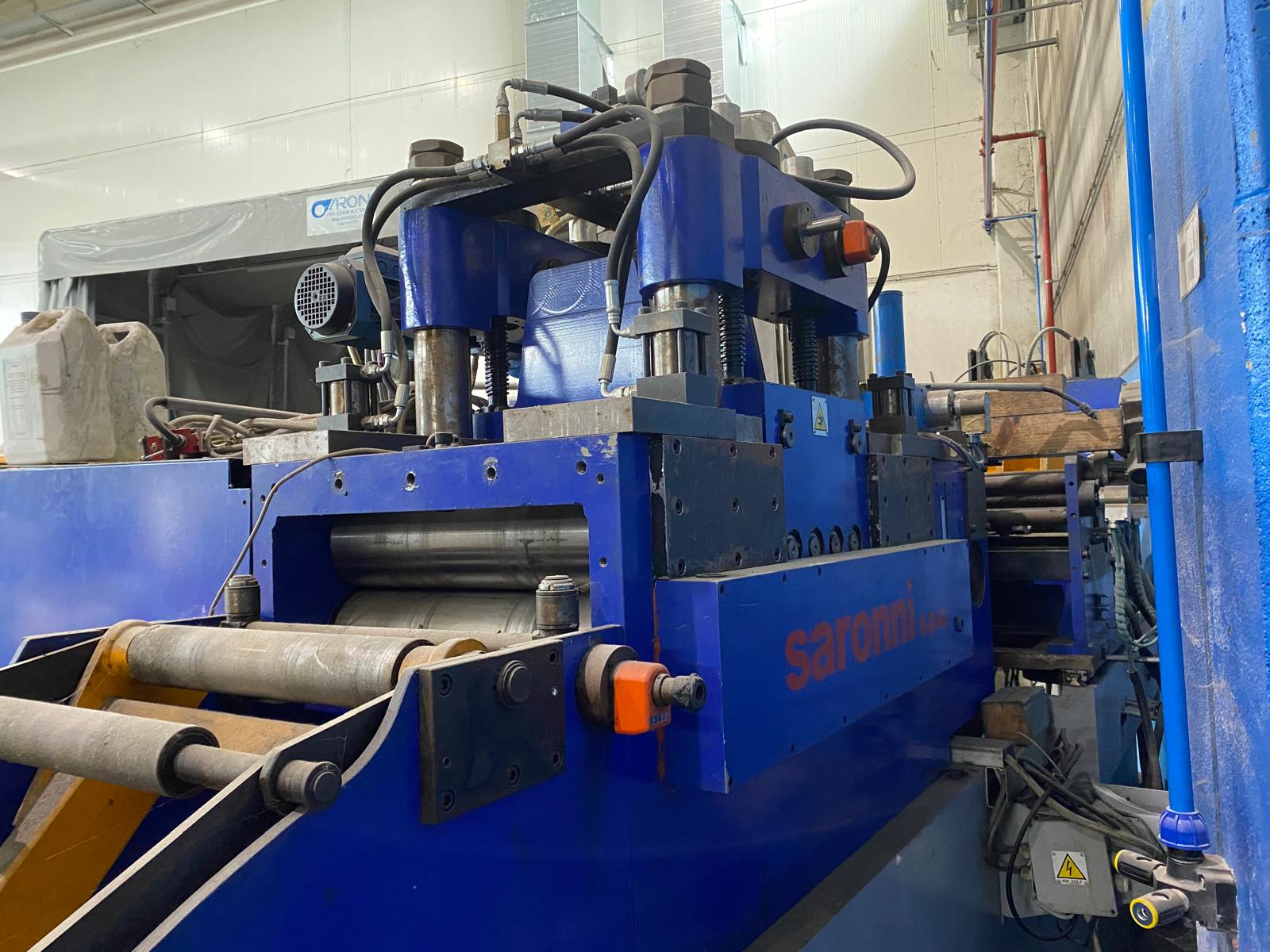

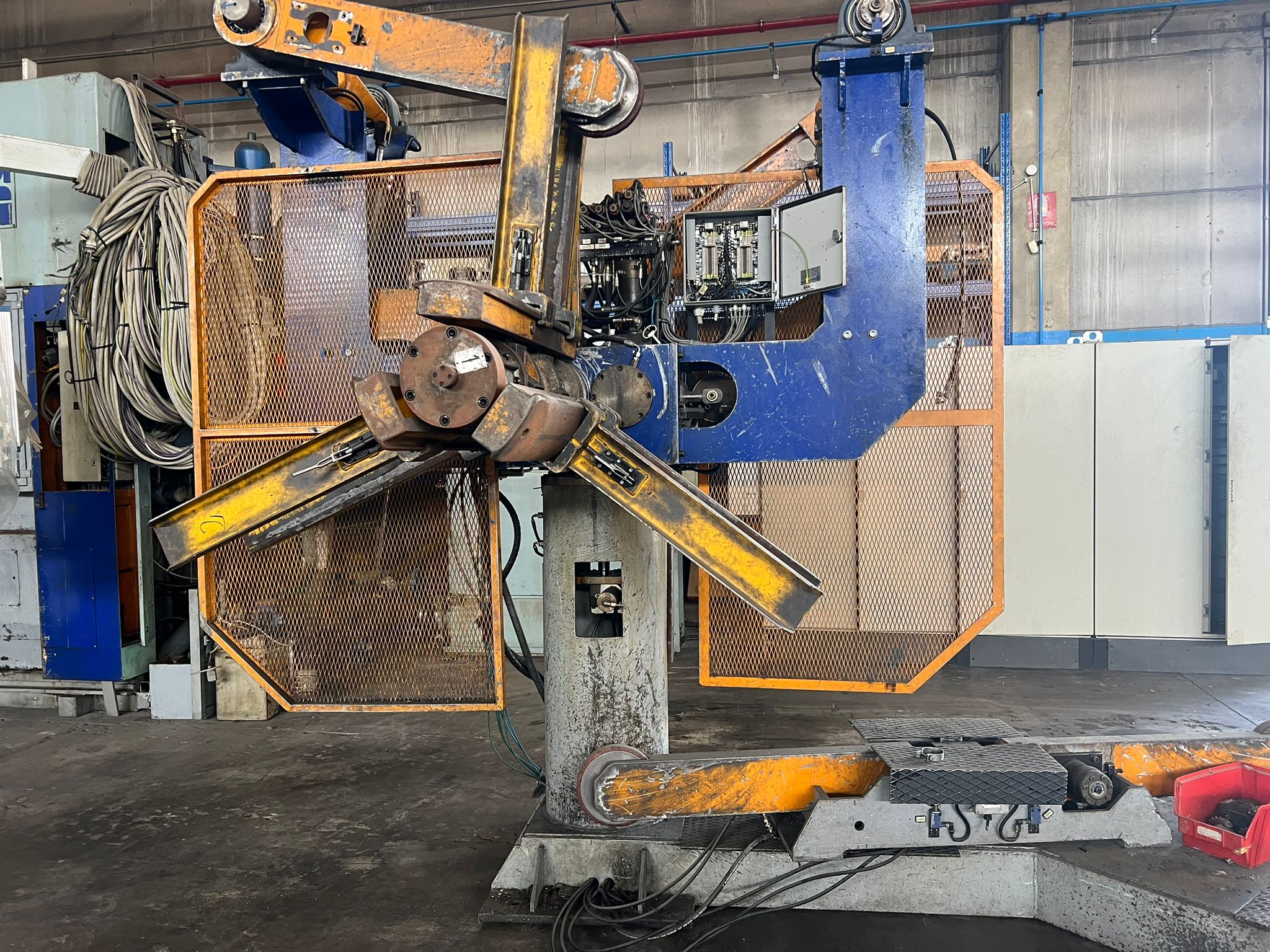

Feeding Line Saronni 500 mm

Our ref: 1229
Ita: Pressa tranciatura fine Fineblanking FEINTOOL

Technical Data Sheet
