Technical Data

Model: PADOVANI 185 CNC SINUMERIK SIEMENS
Year of construction: 1995
Ø swing over ber: 580 mm
Max turning Ø between centres: 400 mm
Headstock and main spindle: DIN 55026 – ASA 6”–8”
Spindle bore: 77/109 mm
Number of spindle speeds: 20+4000/20+3500 Rpm
X – axis travel: 310 mm
Z – axis travel: 620 – 1080 -1520


Built-in rotating center: C.M. 4
Main spindle drive motor (DC): 17,5/30 kW
Coolant tank: 200-220-245 l
Net weight of machine:  6500 Kg | Overall dimensions: 4300 x 2030 x 1950 mm

Our ref: 1136

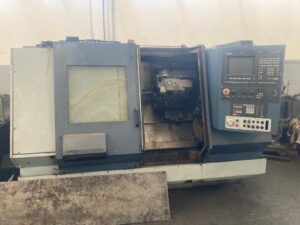

Ita: Tornio a CNC PADOVANI LABOR 185 x 600
